Imagine if your inspections could be faster, smarter, and easier—all without compromising accuracy. With Capture 5.0, that vision becomes reality. This latest version of the software is packed with advanced features and user-friendly enhancements, transforming how professionals approach non-destructive testing (NDT). Whether you’re working with conventional ultrasonic testing (UT), phased array UT (PAUT), time-of-flight diffraction (TOFD), total focusing method (TFM), or adaptive TFM (ATFM), Capture 5.0 is your ultimate tool for precision and efficiency.
Let’s explore how Capture 5.0 is designed to make your inspections seamless and successful.
1. Simplified File Management: Less Time Organizing, More Time Inspecting
[post_relacionado]Managing files is often a tedious part of NDT workflows, but Capture 5.0 streamlines the process. Data is saved as single, consolidated files, making organization straightforward and collaboration effortless. Sharing files with colleagues or integrating them into reports is now quicker than ever.
Gone are the days of juggling multiple files or struggling with cumbersome data formats—Capture 5.0 ensures that your focus stays on what truly matters: delivering precise inspections.
2. A User Interface Built Around You
With a user-centered approach, Capture 5.0 brings a fresh, intuitive interface designed to simplify your workflow. Key improvements include:
- Standardized Color Scheme: A consistent and clean design for easier navigation.
- Always-Available Screenshot Manager: Capture and document your work without interruptions.
- Optimized Menus: Streamlined options to help you find what you need, when you need it.
These upgrades make the software not just a tool but a partner in your work—so you can focus on getting the job done right the first time.
3. Enhanced Performance with PAUT, TFM, and TOFD

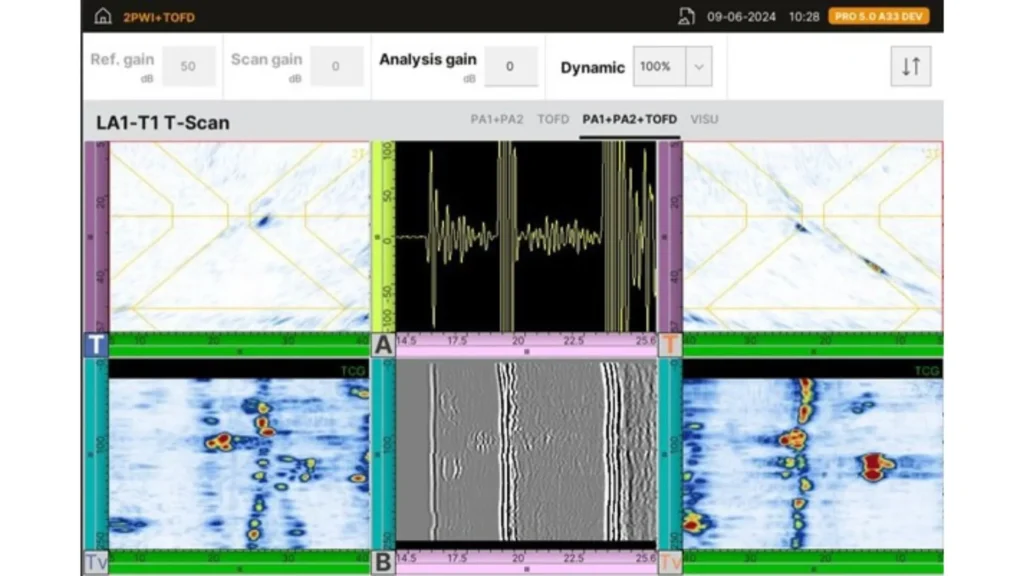

Capture 5.0 introduces groundbreaking dual functionality, allowing inspectors to perform TFM and TOFD simultaneously during weld inspections. This capability enhances defect sizing and moves beyond traditional amplitude-based techniques, offering unmatched flexibility for challenging applications.
With the ability to configure up to four TFM and four TOFD groups, along with faster scanning speeds and optimized live displays, Capture 5.0 empowers you to handle even the most demanding inspection scenarios with ease and confidence.
4. Seamless Connectivity for Streamlined Workflows
Connectivity can be a game-changer in modern inspections. Capture 5.0 integrates tools that keep you connected wherever you are:
- Wi-Fi Integration: Transfer data wirelessly, eliminating the need for physical connections.
- OneDrive Compatibility: Automatically sync files, ensuring your workflow remains uninterrupted.
This seamless connectivity means quicker decisions, better collaboration, and faster access to critical information—helping you stay ahead in the field.
5. Smarter Tools for Precise Inspections
Capture 5.0 makes delivering high-quality results simpler than ever with tools designed to save time and boost accuracy:
- Auto Reference (Ref) Buttons: Quickly adjust gain levels with a single click.
- Keyboard Shortcuts: Intuitively place cursors with ease for precise measurements.
These enhancements allow you to focus on what matters most—achieving reliable, consistent results in every inspection.
6. Advanced Visualization for Better Insights
Seeing is believing, and Capture 5.0 raises the bar with its advanced visualization capabilities. The software lets you merge TFM channels using innovative algorithms to enhance flaw detection and reduce noise:
- Max: Highlights the strongest signals for optimal detection.
- Mean: Averages signals to improve clarity.
- Multiple: Correlates signals to reduce noise further.
With faster 3D rendering and improved top and side views, inspectors can make realtime decisions with greater confidence and precision.
Why You’ll Love Capture 5.0
Capture 5.0 is more than just an upgrade—it’s a transformation in how NDT professionals work. By simplifying workflows, enhancing visualization, and enabling seamless connectivity, this software empowers you to deliver outstanding results with ease. Here’s why it’s a must-have:
- Streamline your workflow with simplified file management.
- Enjoy a smoother, more intuitive user experience.
- Expand your capabilities with dual TFM and TOFD functionality.
- Make better decisions with advanced visualization tools.
Embrace the Future of Non-Destructive Testing
Capture 5.0 isn’t just software; it’s a smarter way to work. By adopting this cutting-edge tool, you’ll elevate your inspection campaigns to new levels of precision and efficiency.
Visit Eddyfi Technologies’ website to learn more about Capture 5.0, access the software download, or connect with our experts to discuss how it can transform your next inspection project.
